Die Stacking



Die Stacking is the process of mounting multiple chips on top of each other within a single semiconductor package. Die stacking, which is also known as 'chip stacking', significantly increases the amount of silicon chip area that can be housed within a single package of a given footprint, conserving precious real estate on the printed circuit board and simplifying the board assembly process. Aside from space savings, die stacking also results in better electrical performance of the device, since the shorter routing of interconnections between circuits results in faster signal propagation and reduction in noise and cross-talk.


Early applications of stacked die involved the stacking of two memory chips on top of each other, such as Flash and SRAM devices.  Today, however, die stacking technology has advanced beyond 'mere' memory chip stacking, and may now involve six or more chips of varying function or technology, e.g., logic, analog, mixed-signal, etc. Indeed, die stacking is now synonymous with 'vertical integration', or the integration of circuits in vertical fashion instead of the traditional horizontal or planar approach.


Die stacking naturally started out with a pyramid style of piling up smaller die on top of larger ones.  The technology has advanced into something that finds no limit in the sizes of chips to stack. It is now common to see a stack of equal-size die, or even a larger die on top of a smaller one. One technique developed is to place a spacer (a dummy layer of silicon) between two die, so that the bond wires are not crushed even if the top die is larger than the bottom die. Unfortunately, the use of spacers between die add to the total package thickness.


Tessera Inc. pioneered the technique of folding stacked die to eliminate the need for spacers between them, calling the process 'folded/stacked' technology. The die are produced side by side and then folded over so that the bond pads are independent of each other.  A relieving layer is placed between the chips to alleviate thermomechanical stresses.


The interconnection of the stacked die within a package presents an even more daunting challenge, especially if wirebonding is employed. Aside from the mechanical intricacies involved in managing the complex lay-out of hundreds of microscopic wires subject to loop profile restrictions, cross-talk during device operation must likewise be avoided. At times, such as when digital, analog, and RF circuits need to be integrated together, the solution would require the use of two interconnection technologies (wirebonding and flipchip bonding) to get the required results.


You May Like These
YI Dome Camera / Wireless IP Indoor Security...
1 Year PlayStation Plus Membership
Smart Ass, the game where it's OK to yell out the answer, even when it's not your turn
Oculus Rift + Touch Virtual Reality System
These Cards Will Get You Drunk - Fun Adult Drinking Game For Parties

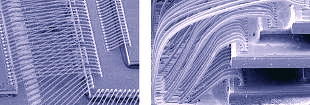

Figure 1.  Wirebonding complexity required by die stacking;
