Lead Frame Die Pad Contamination



Figure 1. Lead Frame Die Pad Contamination



Fresh lead frames received from lead frame manufacturers need to undergo incoming quality assurance inspection, since they may have problems not acceptable for semiconductor packaging, such as contamination.

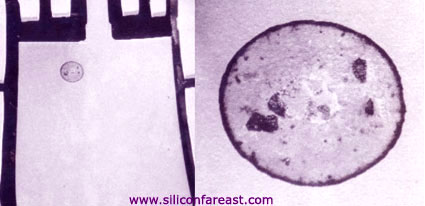

Figure 1 shows SEM photos of a drop of contaminant material on the die pad of a raw lead frame at low magnification (left) and high magnification (right).



EDX analysis needs to be performed on samples such as this to identify the elements present in the contamination.  The presence of foreign elements such as Cl, S, and P can lead to corrosion, and must therefore be considered as a possible ground for rejecting the affected batch of samples.  In fact, in the right SEM photo above, evidence of corrosion in the contaminated area may already be observed.



See Also:  Internal Contamination
