Die Scratch



Figure 1. Die Scratch

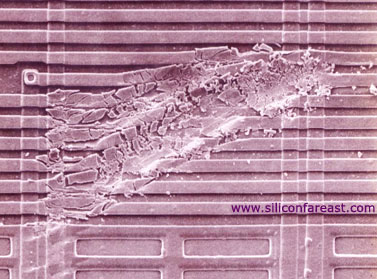

Figure 1 shows a SEM photo of a scratch on the surface of a silicon die. This scratch plowed through several closely-spaced metal lines, causing them to become shorted to one another. Scratches such as this are often caused by mishandling, such as when an operator picks up a die improperly with a tweezer.



See Also:  Package Failures; Die Scratching
